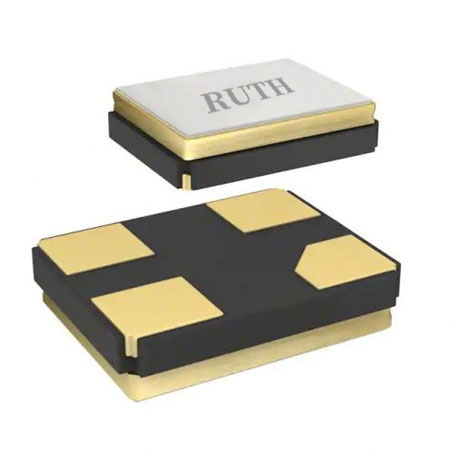

首頁 ? 產品中心 ? 溫補晶振（TCXO） ? TCXO 2520
*高精度、高可靠性、寬溫、低抖動、低功耗
*頻率：20.00MHz-100MHZ
*低電壓運行和低電流消耗
*服務器、測試設備、雷達探測、基站及工業設備
? Specifications
|
Type |
溫補振蕩器(TCXO) |
|
調整頻差 |
Frequency Range |
20.00MHz～100MHZ |
|
|
輸出類型 |
Output Type |
Clipped Sinew ave |
|
|
輸出負載 |
Output Load |
10K ?//10PF |
|
|
振蕩模式 |
Oscillation Mode |
Fundamental |
|
|
供電電壓 |
Supply Voltage |
1.8～3.3v |
|
|
輸入電壓 |
Clipped Sinew ave Output Voltage |
0.8vp-ptypical |
|
|
頻率偏移穩定性 |
Frequency Stability |
Vs,Temperature(-30 - +85°C ) |
±0.5/±2.0PPM |
|
Vs,Load(Load Varies±10% |
±0.2PPMmax |
||
|
Vs,Supply Voltage (VCC=typical±0.1V |
±0.2PPMmax |
||
|
頻率容限 |
Frequency T0leance |
at25°C after2Reflovs with Typical Auo Frequency C0ntrol pin |
±2.5PPMmax |
|
頻率漂移 |
Slope of Frequency Drift |
±0.1ppm/ C Typical;±0.5ppm/ C Max |
|
|
儲存溫度范圍 |
St0rge Temperature Range |
-40～+85° C |
|
|
自動頻率控制范圍 |
Auto Frequency Control(AFC)Range |
±7 -±16ppm（1.4±1） |
|
|
電源電流 |
Supply Current |
2.0mA Max |
|
|
啟動時間 |
Start-up Time |
5me MAX |
|
|
年老化 |
Aging(at25°C) |
±1ppm/year Max. |
|

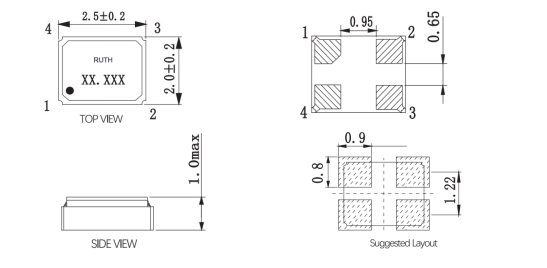

? Dimension(Unit:mm)
